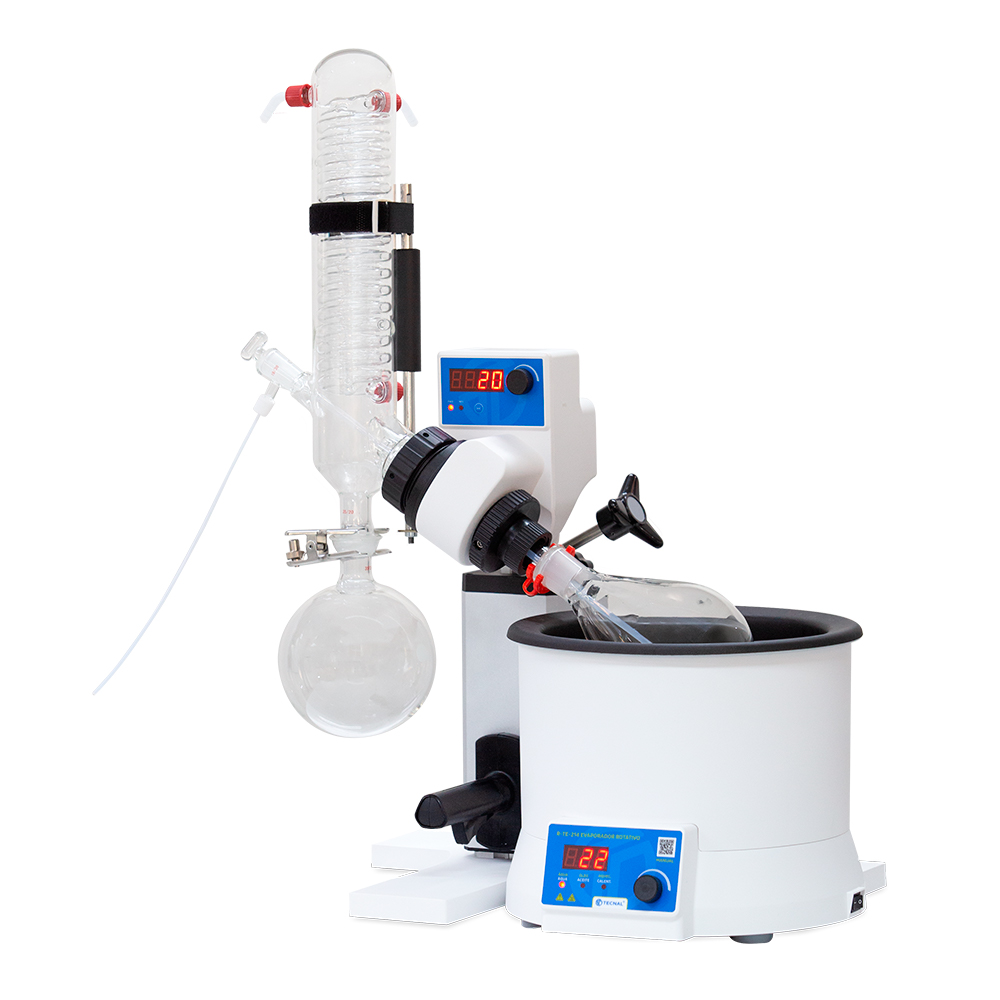

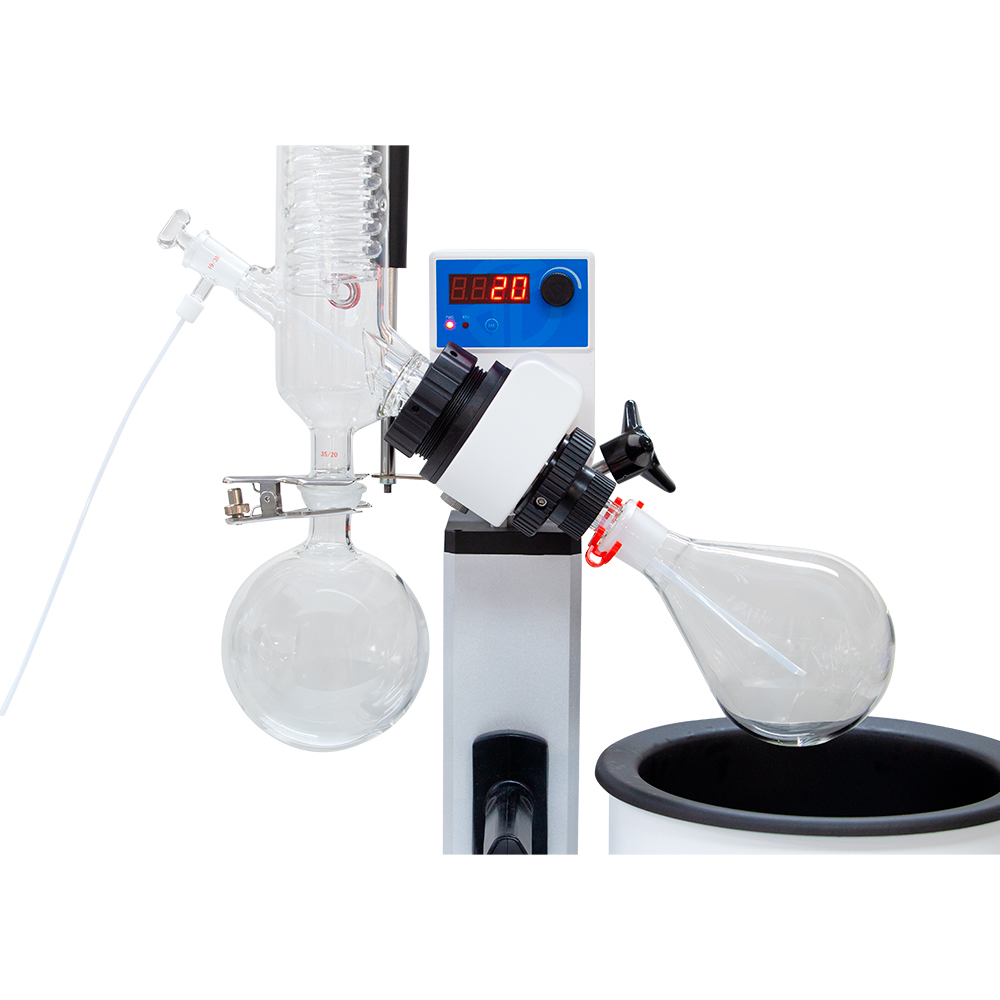

ROTARY EVAPORATOR
ROTARY EVAPORATOR
R-TE-214
Used for sample concentration and solvent distillation under controlled temperature and vacuum conditions.
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
- Intuitive control panel, facilitating programming and operation by the user
- Adjustment of the evaporation system inclination and height, adapting to the analyst’s needs
- Operation with rotation reversal and timing functions, providing greater process control
- Possibility of using the heating bath independently
- Vacuum operation reduces the solvent boiling point, preserving heat-sensitive samples
- Possibility of integration with a thermostatic bath for condenser cooling, increasing efficiency and reducing water consumption
- Simple switching between water and oil heating modes
- Lift system allows easy and precise glassware adjustment
- Microprocessor-based digital controller with PID system, ensuring greater temperature accuracy, stability, and uniformity.
- LED Display: Indicates speed, temperature, and time
- Operation: With water or oil, selectable by switch
- Temperature Range: Ambient up to 180°C
- Accuracy: Water: ±1°C and Oil: ±3°C
- Evaporation Capacity: 1.56 L/h (reference: water)
- Bath Volume: 5 L
- Speed Range: 20 to 200 rpm
- Rotation: In both directions (clockwise and counterclockwise)
- Timer: Integrated
- Timer Adjustment Range: 1 to 999 s
- Lift System: Manual with auxiliary adjustment
- Immersion Angle: Adjustable
- Motor: Brushless DC motor
- Temperature Control: Microprocessor-controlled with PID system
- Protection Class: IP20
- Main Module Dimensions (L × W × H): 440 × 320 × 450 mm
- Heating Bath Dimensions: 300 × 300 × 240 mm
- Heating Power: 1200 W
- Total Power: 1245 W
- Voltage/Frequency: 220 V – 50/60 Hz
- Main Unit Weight: 7 kg
- Heating Bath Weight: 3 kg
- Includes: 1000 ml evaporation flask, 1000 ml receiving flask
