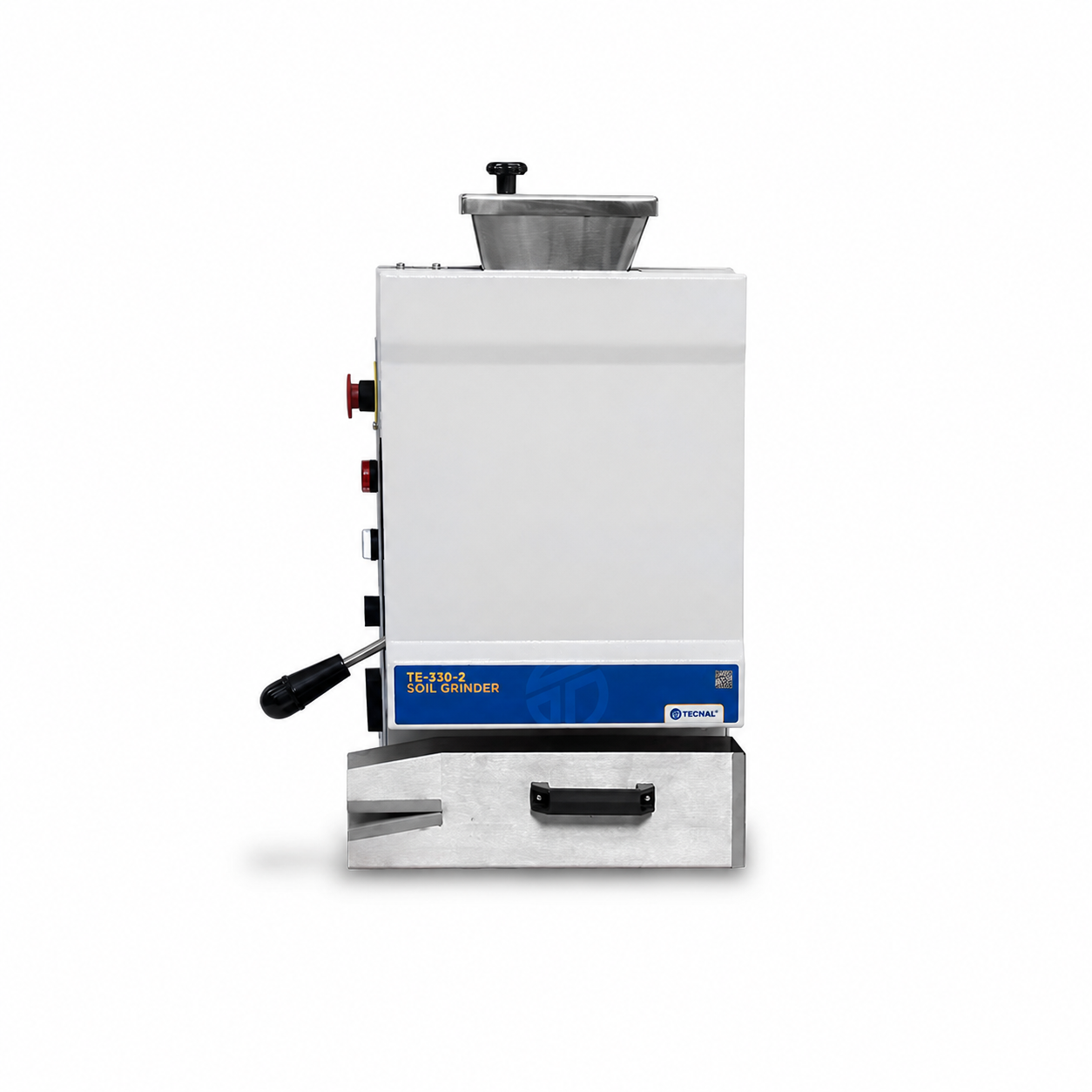

HAMMER MILL FOR SOILS
HAMMER MILL FOR SOILS
TE-330/2
Used for soil preparation for subsequent analyses.
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
- Simple operation
- Continuous-flow grinding, providing agility in sample preparation
- Wide outlet, facilitating the collection of the ground sample
- Access cover to the chamber for easy cleaning
- Grinding chamber without sharp edges, preventing material accumulation and allowing quick cleaning
- Robust equipment, capable of working with soils of different classes and particle sizes
- Emergency stop button
- Interlock system that prevents operation with open doors
- Indicator lights: emergency and power-on status
- Strict quality control: inspections and tests ensure proper equipment operation, providing safety and customer satisfaction
- Specialized support, offering assistance for questions and guidance on the equipment and methodologies.
- Fixed rotation speed: 1750 rpm ±10%
- Sealed induction motor: 1/4 HP
- Rotor: Made of 304 stainless steel and movable hammers made of 316L stainless steel
- Cabinet: Made of 1020 carbon steel with electrostatic powder coating and anti-corrosive treatment

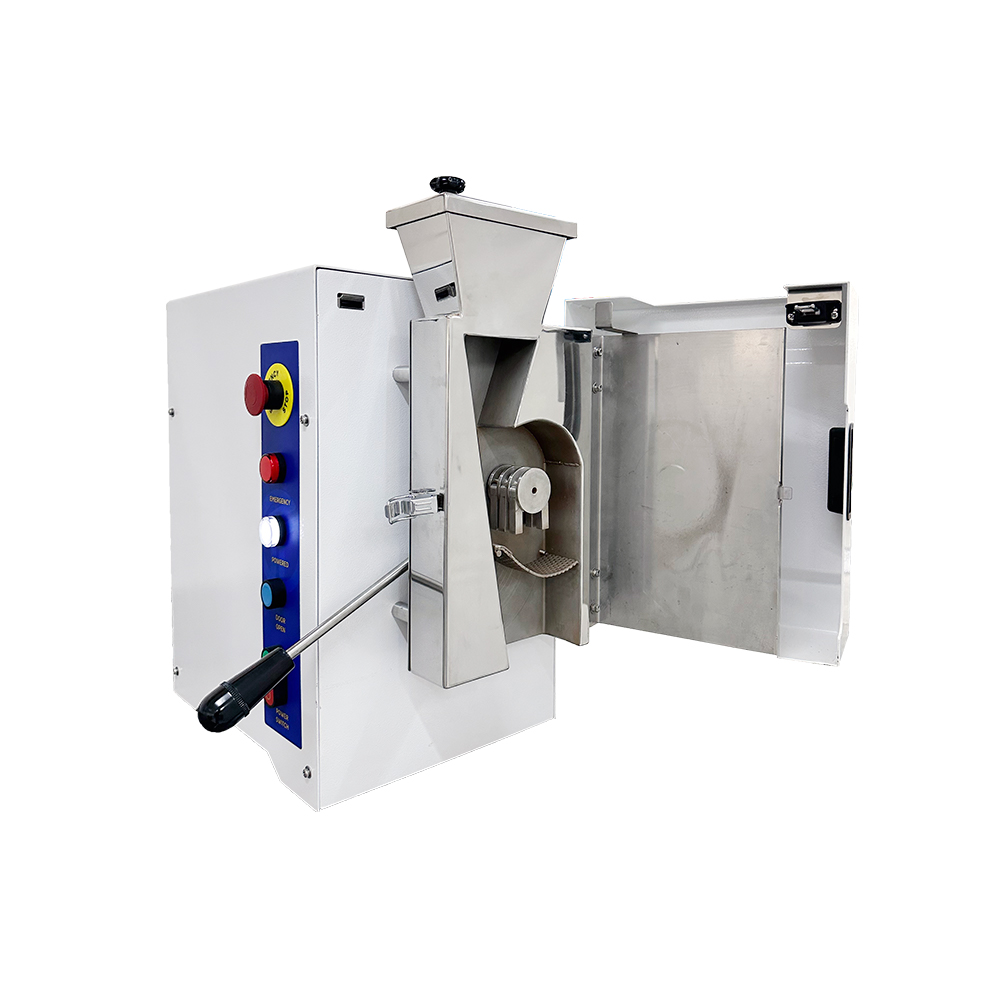

- Access lid to the grinding chamber: For easy internal cleaning
- Protective cover: Preventing access to moving parts during operation
- Grinding chamber: Made of 304 stainless steel
- Safety features: Electronic interlock system that prevents operation when doors are open
- Timing system: That prevents access to internal parts while the equipment is still in motion
- Emergency: Stop button

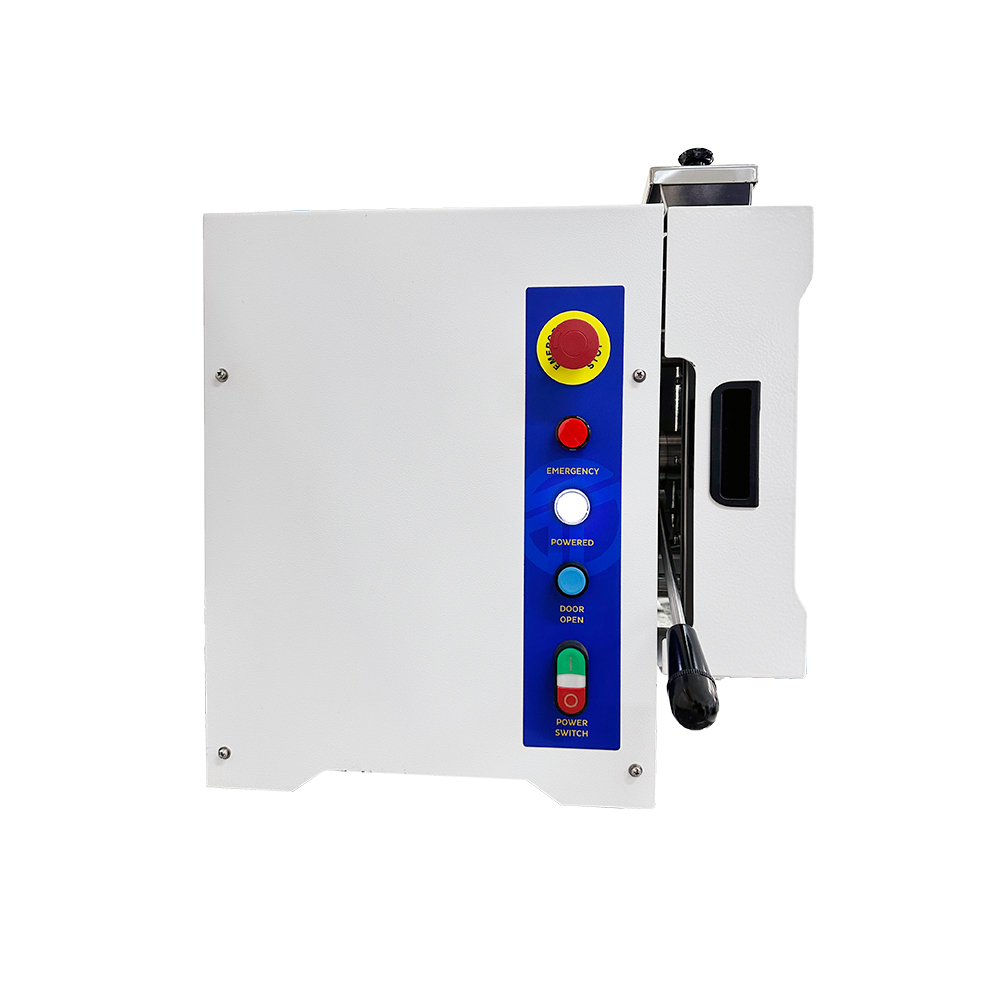

- Button panel: For door opening
- Standardized: ON/OFF switch
- Indicator lights: For emergency and power-on status
- Dimensions: W=385 mm D=540 mm H=570 mm
- Weight: 48 kg
- Power: 250W
- Operating voltage: 220 V ±5%, 50/60 Hz
- Supplied with: - Sample collector with 2.0 mm mesh screen in 304 stainless steel - Digital instruction manual with warranty certificate
- Safety standard: • Complies with CE safety standards (European Certification) • Relevant EU directives 2023/1230/EU – Machinery; 2014/35/EU – Low Voltage • Applied harmonized standards EN ISO 12100 EN IEC 62321-1 EN IEC 62321-2 EN IEC 62321-3-1 EN IEC 61010-1 EN IEC 61010-2-201
Tecnal offers solutions in equipment for laboratories in various segments of activity, focused on the proper functioning of products, ease of use and high accuracy of results!
