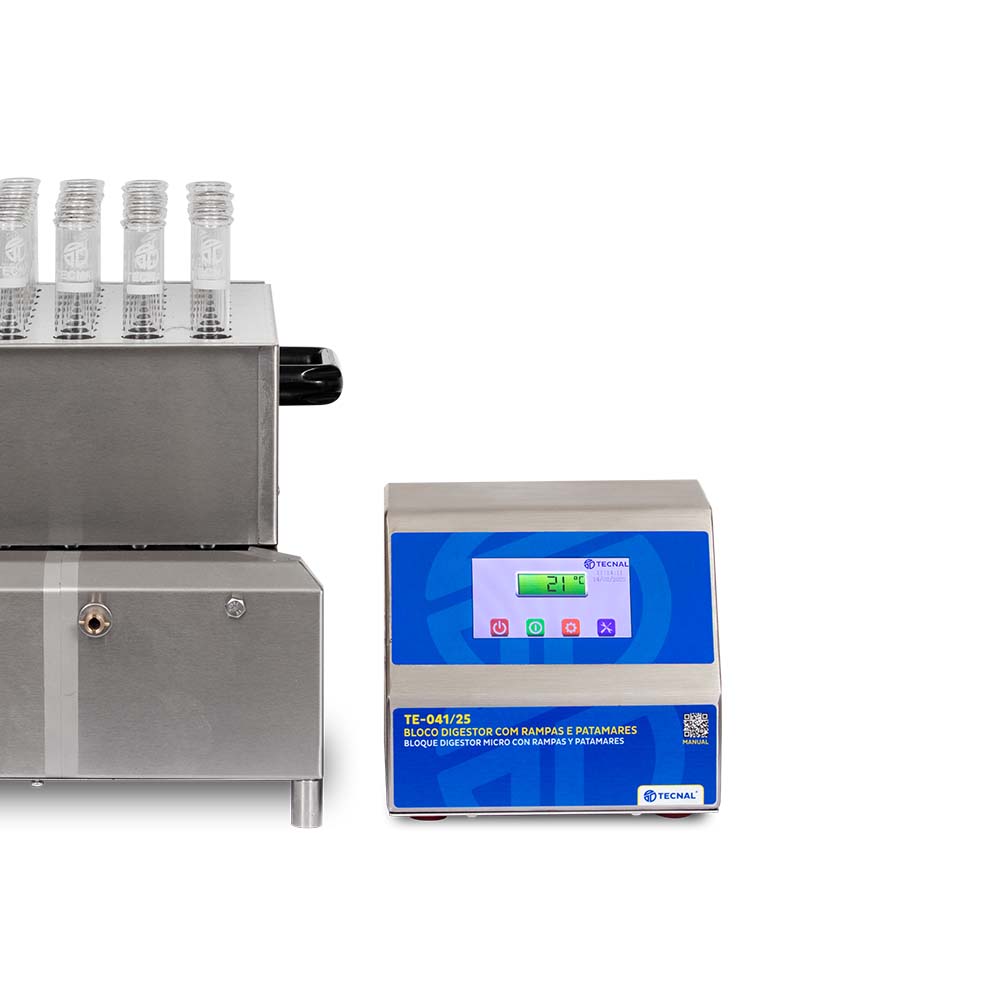

DIGESTOR BLOCK WITH TOUCH SCREEN RAMPS AND LANDERS
DIGESTOR BLOCK WITH TOUCH SCREEN RAMPS AND LANDERS
TE-041/25
Used to digest the most diverse types of samples, such as plants, food, rubber, among others, for later analysis of nitrogen / protein.
Sugar & Ethanol
Food, Beverage & Animal Nutrition
Environmental, Waters & Effluents
Plant & Soil Science
Pharmaceutical & Cosmetics
Microbiology & Biotechnology
Chemistry & Petrochemicals
- Compact equipment
- User-friendly touch screen display
- It has date and time on the display
- It has Stand-by mode
- After starting the process, it takes place automatically, providing agility

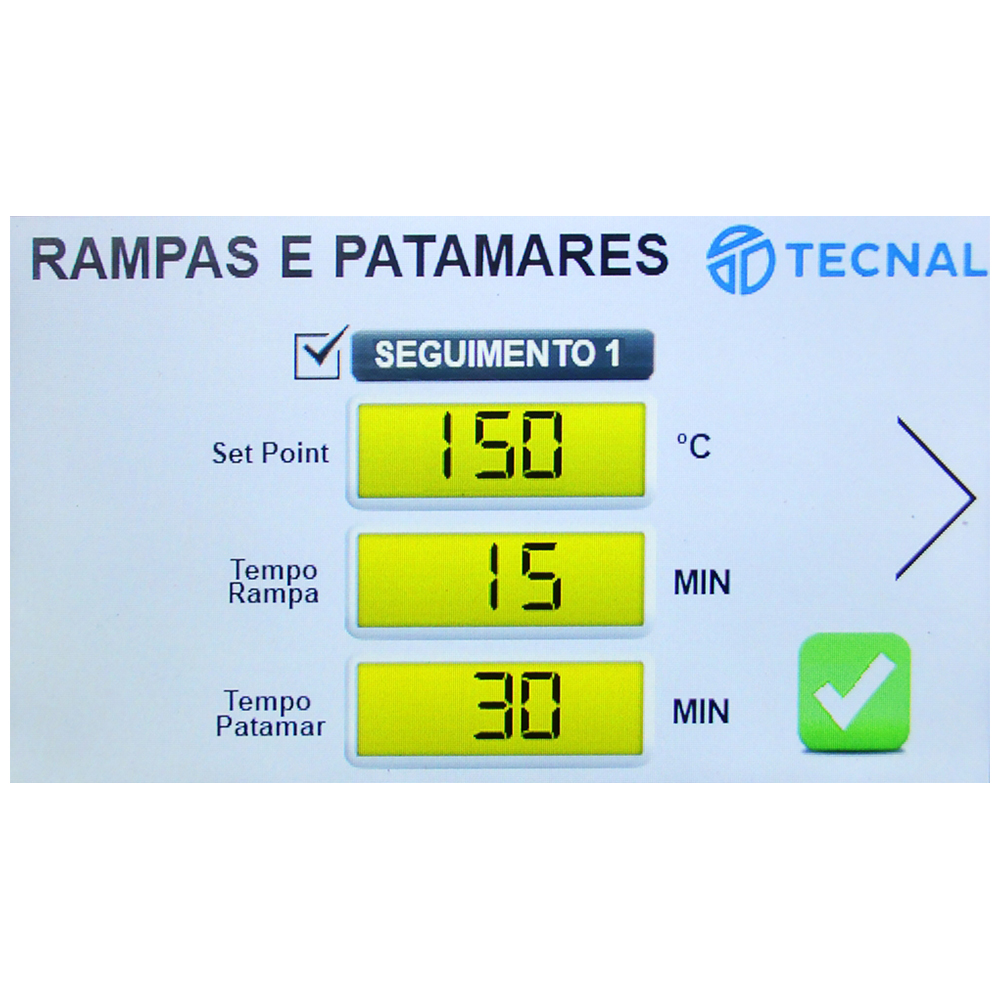

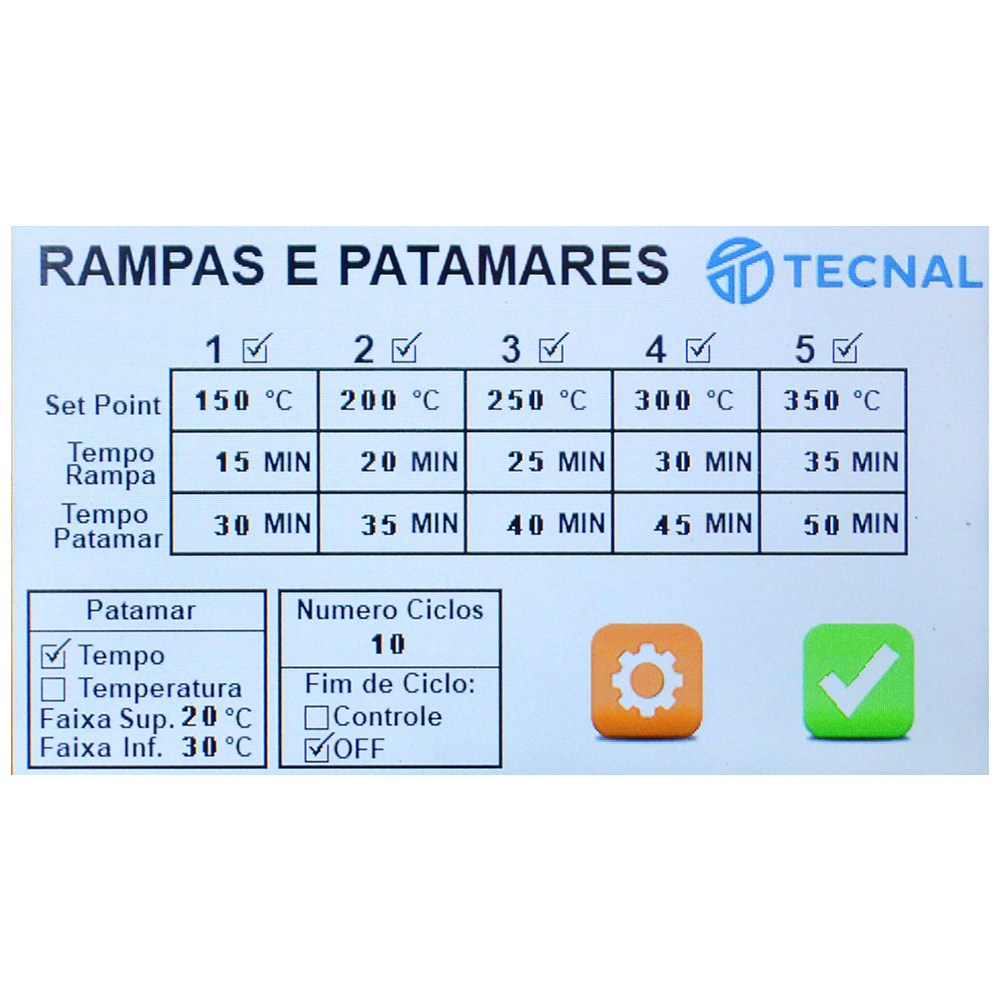

- It can have 5 segments, therefore 5 ramps and 5 steps
- Allows control of the time that the sample must remain at a certain temperature (level)
- Allows control of acceptable temperature variation in the process
- The ramp, when well dimensioned, allows the temperature rise to be smooth, resulting in low overshoot and better temperature distribution across the block
- At the end of the fulfillment of the programmed segments there is a resource item called looping (cycles), it can be 0 to 10, providing agility
- Allows the jumper option, in which two thresholds with the same set point can be programmed, providing plateau with longer time
- At the end of the process there is the control option (remaining at constant temperature) or the end option, the client choice
- It has a controller box separate from the block, which can be left outside the hood, resulting in a longer useful life to the equipment for being more protected from acidic gases and vapors
- Possibility of adaptations according to the client needs, makes the equipment already of line a special equipment.
- Temperature: Ambient +7°C to 450°C
- Temperature Controller: FE15J Digital controller board with PID system and ramps and steps with 1 program divided into 5 segments (temperatures) selectable with a maximum of 5 ramps and 5 steps (if 5 temperatures are selected). Possibility of 10 cycle repetitions
- Selection of counting type: By time (counts the time regardless of temperature and obeys the programmed time) or by temperature (only starts counting if the system is within the programmed limit)
- Control selection after ramps and soaks: Turns off the control or controls at the last set point
- Operation screen: TOUCH SCREEN 4.3
- Sensor: J type with stainless spring
- Accuracy: ±1°C
- Uniformity: ±3°C
- Safety: Shielded resistance avoiding contact with sulfuric acid and type B circuit breaker
- Block: In die-cast aluminum with 45 mm hole depth
- Cabinet: Stainless steel 304
- Dimensions: W=320 x D=430 x H=330 mm
- Weight: 18 kg
- Power: 2200 Watts
- Voltage: 220 Volts
- ACCOMPANIES: - 01 gallery in 304 stainless steel - 01 digital temperature controller with ramps and soaks - 40 micro tubes in 90 ml borosilicate glass Ø25 x 250 mm - Instruction Manual with Warranty Term
Tecnal offers solutions in equipment for laboratories in various segments of activity, focused on the proper functioning of products, ease of use and high accuracy of results!
